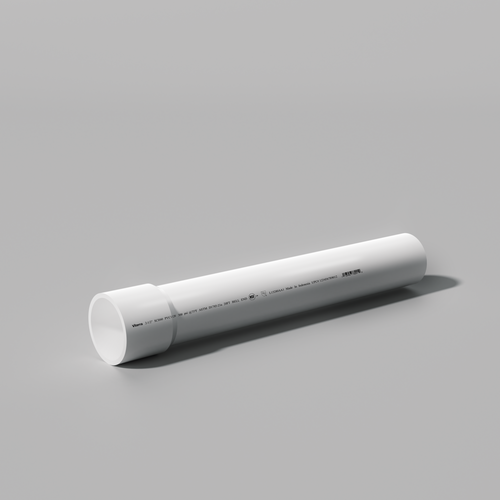

2-1/2 in. x 20 ft. PVC Schedule 40 DWV Pressure Pipe - Bell End

SKU: 2.5-BE-S40-WHT-20

UPC: 199833000070

$34.60

Current Stock:

Description
Specification
Technical Documents

PVC Sch. 40 Pipe is dual-marked for DWV and pressure applications, offering high durability, tensile strength, and impact resistance. Manufactured to ASTM D1785 for pressure applications and ASTM D2665 for non-pressure DWV use, it ensures reliable performance in residential and commercial systems. It installs easily with primer and solvent cement, and provides better sound deadening than Foam Core alternatives.

Application	Plumbing, Irrigation
Color	White
Pipe Diameter	2-1/2 in.
Pressure Rating	300PSI @ 73F
Minimum Working Temperature F	32 F
Maximum Working Temperature F	140 F
Laboratory Certification	NSF pw-G-dwv
Length FT	20 FT
End Type	Bell End
Actual Outer Diameter In	2.875 in.
Acutal Inner Diameter In	2.445 in.
Wall Thickness In	0.203 in.
Pipe Stifness PSI	784 PSI
Product Weight Lbs/pc	22.36 lbs
Weight Per Foot	1.118 lbs/ft
Pieces Per Lift	73 pcs
Feet Per Lift	1460 FT
Weight Per Lift	1,632 lbs
Lifts Per Truck	28
Truck Percent Per Lift	3.57%
Weight Per Truck Lbs	45,704 lbs
Lift Dimensions	22ft x 48.5in x 14.5in
Applicable Standards	ASTM D1784, ASTM D1785-21a, ASTM D2665
Certifications	U.P.Code, NSF-14, NSF-61
Features	No Additional Features
Lift UPC	199833990074
Returnable	30-Day
